Robins Surfacing Machines
Robins RS1.6M Cylinder Head Surfacing Machine
*2 in one Universal fixture V Blocks Cylinder Heads
*Operator Panel display made simple & easy
*Operator friendly Software Specifically developed & designed for RubiSurf SIMPLE Series machines offer productivity increase of 30% to 50%. Also superior finish and Surface flatness. All buttons and switches are eliminated saving operator time in set-ups. Feeding down the spindle shows exact spindle position. Low cost universal clamp fixture, high precision dual-inserts Cutter head - up/down perations are all built in the software. Infinitely variable speed and feed rates can be pre-set.
Operator friendly Software Specifically developed & designed for RubiSurf SMART Series machines offers productivity increase of 30% to 50%. Also superior finish and Surface flatness. All buttons and switches are eliminated saving operator time in set-ups. Feeding down the spindle shows exact spindle
position. Tilt fixture float & clamp, High Precision Dual-Inserts Cutter head - up/down operations are all built in the software. Infinitely variable speed and feed rates can be pre-set.
Robins RS1.7 Cylinder Head Surfacing Machine

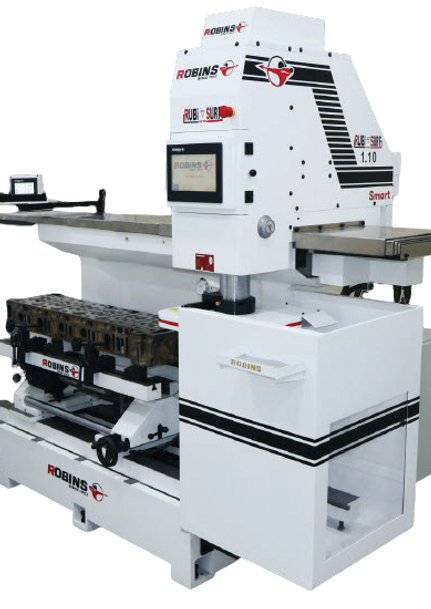

RUBI SURF 1.10 The Robins Rubi Surf 1.10 is a heavy-duty engine resurfacing machine built for precision machining
of large engine cylinder blocks and cylinder heads. Engineered with a robust, ribbed cast iron structure, it delivers exceptional stability and durability for demanding resurfacing tasks. Featuring a recirculating-ball screw table feed, adjustable spindle speeds, and an inverter-controlled motor, it ensures smooth, accurate cutting. With an intuitive control panel and digital user interface, the Rubi Surf 1.10 is designed for efficiency, reliability, and superior performance in heavy-duty enginerebuilding applications.
Robins RS1.10 Cylinder Head Surfacing Machine
Robins RubiSurf Smart Cylinder Head, Block and Manifold Surfacing Machines
The Robins RubiSurf are CNC surfacing machines designed for precision machining of cylinder heads, engine blocks and manifolds. Engineered to enhance efficiency and accuracy, it significantly reduces the time required for surfacing tasks. For instance, Ross Automotive Machine in Lapeer, Michigan, reported a reduction in surfacing time from 45 minutes to approximately 10 minutes per large 24 valve diesel heads after integrating the RubiSurf into their machine shop operations.
This machine accommodates various components, including exhaust and intake manifolds, offering versatility in engine rebuilding applications. Its user-friendly SMART control allows operators to initiate the machining process and attend to other tasks, thereby optimizing workflow and productivity.
​
Key Features:
The Robins RubiSurf Smart Surfacing Machines offers several advanced features to enhance machining precision and efficiency:
-
Turcite Machine Ways and Ball Screws: The machine is equipped with high precision ball screws and Turcite machine ways that allow smooth movement that allows very low WAVINESS numbers required for todays MLS Multi Layer Steel head gaskets.
-
Spindle Bearings and Precision Vertical Feed: The spindle is equipped with high precision angular contact bearings and feeds in .0001” .0025mm increments allowing accurate machining with minimum material removal - essential for todays performance and diesel cylinder heads.

-
Dual axis leveling head fixture table and dual axis digital level allow fast set up and precision leveling for minimum material removal. ​
​
Heavy Duty Model: The RubiSurf 1.10 is designed for large diesel and gas heads up to 47” 1,195mm long that are mode from CGI – compact graphite iron. The 4.5” 115mm diameter spindle offers extreme rigidity to give perfect surface finish.
